Interface class for components of a TIFF directory hierarchy (Composite pattern). Both TIFF directories as well as entries implement this interface. A component can be uniquely identified by a tag, group tuple. This class is implemented as a NVI (Non-Virtual Interface) and it has an interface for visitors (Visitor pattern) to perform operations on all components. More...

#include <tiffcomposite_int.hpp>

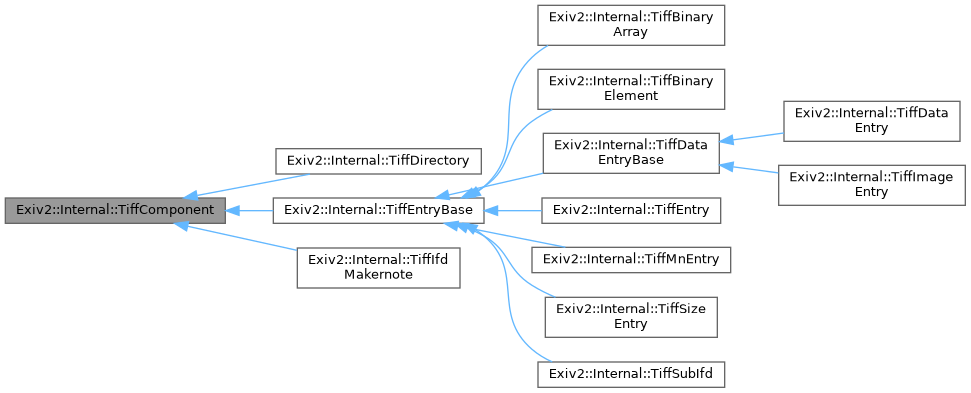

Inheritance diagram for Exiv2::Internal::TiffComponent:

[legend]

Public Types
using	UniquePtr = std::unique_ptr< TiffComponent >
	TiffComponent auto_ptr type.

using	Components = std::vector< UniquePtr >
	Container type to hold all metadata.

Public Member Functions
Creators
constexpr	TiffComponent (uint16_t tag, IfdId group)
	Constructor.

virtual	~TiffComponent ()=default
	Virtual destructor.

	TiffComponent (const TiffComponent &)=default

TiffComponent &	operator= (const TiffComponent &)=default

Manipulators
TiffComponent *	addPath (uint16_t tag, TiffPath &tiffPath, TiffComponent *pRoot, UniquePtr object=nullptr)
	Add a TIFF entry tag to the component. Components on the path to the entry are added if they don't exist yet.

TiffComponent *	addChild (UniquePtr tiffComponent)
	Add a child to the component. Default is to do nothing.

TiffComponent *	addNext (UniquePtr tiffComponent)
	Add a "next" component to the component. Default is to do nothing.

void	accept (TiffVisitor &visitor)
	Interface to accept visitors (Visitor pattern). Visitors can perform operations on all components of the composite.

void	setStart (const byte *pStart)
	Set a pointer to the start of the binary representation of the component in a memory buffer. The buffer must be allocated and freed outside of this class.

size_t	write (IoWrapper &ioWrapper, ByteOrder byteOrder, size_t offset, size_t valueIdx, size_t dataIdx, size_t &imageIdx)
	Write a TiffComponent to a binary image.

Accessors
uint16_t	tag () const
	Return the tag of this entry.

IfdId	group () const
	Return the group id of this component.

byte *	start () const
	Return a pointer to the start of the binary representation of the component.

UniquePtr	clone () const
	Return an auto-pointer to a copy of itself (deep copy, but without any children). The caller owns this copy and the auto-pointer ensures that it will be deleted.

size_t	writeData (IoWrapper &ioWrapper, ByteOrder byteOrder, size_t offset, size_t dataIdx, size_t &imageIdx) const
	Write the IFD data of this component to a binary image. Return the number of bytes written. Components derived from TiffEntryBase implement this method if needed.

size_t	writeImage (IoWrapper &ioWrapper, ByteOrder byteOrder) const
	Write the image data of this component to a binary image. Return the number of bytes written. TIFF components implement this method if needed.

size_t	size () const
	Return the size in bytes of the IFD value of this component when written to a binary image.

size_t	count () const
	Return the number of components in this component.

size_t	sizeData () const
	Return the size in bytes of the IFD data of this component when written to a binary image. This is a support function for write(). Components derived from TiffEntryBase implement this method corresponding to their implementation of writeData().

size_t	sizeImage () const
	Return the size in bytes of the image data of this component when written to a binary image. This is a support function for write(). TIFF components implement this method corresponding to their implementation of writeImage().

virtual int	idx () const
	Return the unique id of the entry in the image.

Protected Member Functions
Protected Manipulators
virtual TiffComponent *	doAddPath (uint16_t tag, TiffPath &tiffPath, TiffComponent *pRoot, TiffComponent::UniquePtr object)
	Implements addPath(). The default implementation does nothing.

virtual TiffComponent *	doAddChild (UniquePtr tiffComponent)
	Implements addChild(). The default implementation does nothing.

virtual TiffComponent *	doAddNext (UniquePtr tiffComponent)
	Implements addNext(). The default implementation does nothing.

virtual void	doAccept (TiffVisitor &visitor)=0
	Implements accept().

virtual size_t	doWrite (IoWrapper &ioWrapper, ByteOrder byteOrder, size_t offset, size_t valueIdx, size_t dataIdx, size_t &imageIdx)=0
	Implements write().

Protected Accessors
virtual TiffComponent *	doClone () const =0
	Internal virtual copy constructor, implements clone().

virtual size_t	doWriteData (IoWrapper &ioWrapper, ByteOrder byteOrder, size_t offset, size_t dataIdx, size_t &imageIdx) const =0
	Implements writeData().

virtual size_t	doWriteImage (IoWrapper &ioWrapper, ByteOrder byteOrder) const =0
	Implements writeImage().

virtual size_t	doSize () const =0
	Implements size().

virtual size_t	doCount () const =0
	Implements count().

virtual size_t	doSizeData () const =0
	Implements sizeData().

virtual size_t	doSizeImage () const =0
	Implements sizeImage().

Detailed Description

Interface class for components of a TIFF directory hierarchy (Composite pattern). Both TIFF directories as well as entries implement this interface. A component can be uniquely identified by a tag, group tuple. This class is implemented as a NVI (Non-Virtual Interface) and it has an interface for visitors (Visitor pattern) to perform operations on all components.

Member Function Documentation

◆ accept()

void Exiv2::Internal::TiffComponent::accept ( TiffVisitor & visitor )

Interface to accept visitors (Visitor pattern). Visitors can perform operations on all components of the composite.

Parameters

visitor The visitor.

References doAccept(), Exiv2::Internal::TiffVisitor::geTraverse, and Exiv2::Internal::TiffVisitor::go().

Referenced by Exiv2::Internal::TiffEncoder::add(), Exiv2::Internal::TiffIfdMakernote::doAccept(), Exiv2::Internal::TiffEncoder::encodeImageEntry(), Exiv2::Internal::nikonCrypt(), Exiv2::Internal::TiffReader::readDataEntryBase(), Exiv2::Internal::TiffDecoder::TiffDecoder(), Exiv2::Internal::TiffEncoder::TiffEncoder(), Exiv2::Internal::TiffReader::visitBinaryArray(), Exiv2::Internal::TiffReader::visitMnEntry(), and Exiv2::Internal::TiffReader::visitSizeEntry().

◆ addChild()

TiffComponent * Exiv2::Internal::TiffComponent::addChild ( TiffComponent::UniquePtr tiffComponent )

Add a child to the component. Default is to do nothing.

Parameters

tiffComponent Auto pointer to the component to add.

Returns: Return a pointer to the newly added child element or 0.

References doAddChild().

Referenced by Exiv2::Internal::TiffBinaryArray::addElement(), Exiv2::Internal::TiffIfdMakernote::doAddChild(), Exiv2::Internal::TiffDirectory::doAddPath(), Exiv2::Internal::TiffSubIfd::doAddPath(), and Exiv2::Internal::TiffBinaryArray::doAddPath().

◆ addNext()

TiffComponent * Exiv2::Internal::TiffComponent::addNext ( TiffComponent::UniquePtr tiffComponent )

Add a "next" component to the component. Default is to do nothing.

Parameters

tiffComponent Auto pointer to the component to add.

Returns: Return a pointer to the newly added "next" element or 0.

References doAddNext().

Referenced by Exiv2::Internal::TiffIfdMakernote::doAddNext(), and Exiv2::Internal::TiffDirectory::doAddPath().

◆ addPath()

TiffComponent * Exiv2::Internal::TiffComponent::addPath	(	uint16_t	tag,
		TiffPath &	tiffPath,
		TiffComponent *	pRoot,
		TiffComponent::UniquePtr	object = `nullptr`
	)

Add a TIFF entry tag to the component. Components on the path to the entry are added if they don't exist yet.

Parameters

tag	The tag of the new entry
tiffPath	A path from the TIFF root element to a TIFF entry.
pRoot	Pointer to the root component of the TIFF composite.
object	TIFF component to add. If 0, the correct entry will be created.

Returns: A pointer to the newly added TIFF entry.

References doAddPath(), and tag().

Referenced by Exiv2::Internal::TiffEncoder::add(), Exiv2::Internal::TiffCopier::copyObject(), Exiv2::Internal::TiffDirectory::doAddPath(), and Exiv2::Internal::TiffIfdMakernote::doAddPath().

◆ doAccept()

virtual void Exiv2::Internal::TiffComponent::doAccept ( TiffVisitor & visitor )

protectedpure virtual

Implements accept().

Implemented in Exiv2::Internal::TiffEntry, Exiv2::Internal::TiffDataEntry, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffSizeEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, Exiv2::Internal::TiffBinaryArray, and Exiv2::Internal::TiffBinaryElement.

Referenced by accept().

◆ doAddChild()

TiffComponent * Exiv2::Internal::TiffComponent::doAddChild ( UniquePtr tiffComponent )

protectedvirtual

Implements addChild(). The default implementation does nothing.

Reimplemented in Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, and Exiv2::Internal::TiffBinaryArray.

Referenced by addChild().

◆ doAddNext()

TiffComponent * Exiv2::Internal::TiffComponent::doAddNext ( UniquePtr tiffComponent )

protectedvirtual

Implements addNext(). The default implementation does nothing.

Reimplemented in Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffMnEntry, and Exiv2::Internal::TiffIfdMakernote.

Referenced by addNext().

◆ doAddPath()

TiffComponent * Exiv2::Internal::TiffComponent::doAddPath	(	uint16_t	tag,
		TiffPath &	tiffPath,
		TiffComponent *	pRoot,
		TiffComponent::UniquePtr	object
	)

protectedvirtual

Implements addPath(). The default implementation does nothing.

Reimplemented in Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, and Exiv2::Internal::TiffBinaryArray.

Referenced by addPath().

◆ doClone()

virtual TiffComponent * Exiv2::Internal::TiffComponent::doClone ( ) const

protectedpure virtual

Internal virtual copy constructor, implements clone().

Implemented in Exiv2::Internal::TiffEntry, Exiv2::Internal::TiffDataEntry, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffSizeEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, Exiv2::Internal::TiffBinaryArray, and Exiv2::Internal::TiffBinaryElement.

Referenced by clone().

◆ doCount()

virtual size_t Exiv2::Internal::TiffComponent::doCount ( ) const

protectedpure virtual

Implements count().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, Exiv2::Internal::TiffBinaryArray, and Exiv2::Internal::TiffBinaryElement.

Referenced by count().

◆ doSize()

virtual size_t Exiv2::Internal::TiffComponent::doSize ( ) const

protectedpure virtual

Implements size().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, Exiv2::Internal::TiffBinaryArray, and Exiv2::Internal::TiffBinaryElement.

Referenced by size().

◆ doSizeData()

virtual size_t Exiv2::Internal::TiffComponent::doSizeData ( ) const

protectedpure virtual

Implements sizeData().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffDataEntry, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, and Exiv2::Internal::TiffIfdMakernote.

Referenced by sizeData().

◆ doSizeImage()

virtual size_t Exiv2::Internal::TiffComponent::doSizeImage ( ) const

protectedpure virtual

Implements sizeImage().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, and Exiv2::Internal::TiffIfdMakernote.

Referenced by sizeImage().

◆ doWrite()

virtual size_t Exiv2::Internal::TiffComponent::doWrite	(	IoWrapper &	ioWrapper,
		ByteOrder	byteOrder,
		size_t	offset,
		size_t	valueIdx,
		size_t	dataIdx,
		size_t &	imageIdx
	)

protectedpure virtual

Implements write().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffDataEntry, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, Exiv2::Internal::TiffMnEntry, Exiv2::Internal::TiffIfdMakernote, Exiv2::Internal::TiffBinaryArray, and Exiv2::Internal::TiffBinaryElement.

Referenced by write().

◆ doWriteData()

virtual size_t Exiv2::Internal::TiffComponent::doWriteData	(	IoWrapper &	ioWrapper,
		ByteOrder	byteOrder,
		size_t	offset,
		size_t	dataIdx,
		size_t &	imageIdx
	)		const

protectedpure virtual

Implements writeData().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffDataEntry, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, and Exiv2::Internal::TiffIfdMakernote.

Referenced by writeData().

◆ doWriteImage()

virtual size_t Exiv2::Internal::TiffComponent::doWriteImage	(	IoWrapper &	ioWrapper,
		ByteOrder	byteOrder
	)		const

protectedpure virtual

Implements writeImage().

Implemented in Exiv2::Internal::TiffEntryBase, Exiv2::Internal::TiffImageEntry, Exiv2::Internal::TiffDirectory, Exiv2::Internal::TiffSubIfd, and Exiv2::Internal::TiffIfdMakernote.

Referenced by writeImage().

◆ idx()

int Exiv2::Internal::TiffComponent::idx ( ) const

virtual

Return the unique id of the entry in the image.

Reimplemented in Exiv2::Internal::TiffEntryBase.

Referenced by Exiv2::Internal::TiffDirectory::doWrite().

◆ write()

size_t Exiv2::Internal::TiffComponent::write	(	IoWrapper &	ioWrapper,
		ByteOrder	byteOrder,
		size_t	offset,
		size_t	valueIdx,
		size_t	dataIdx,
		size_t &	imageIdx
	)

Write a TiffComponent to a binary image.

Parameters

ioWrapper	IO wrapper to which the TiffComponent is written.
byteOrder	Applicable byte order (little or big endian).
offset	Offset from the start of the image (TIFF header) to the component.
valueIdx	Index of the component to be written relative to offset.
dataIdx	Index of the data area of the component relative to offset.
imageIdx	Index of the image data area relative to offset.

Returns: Number of bytes written to the IO wrapper including all nested components.

Exceptions

Error If the component cannot be written.

References doWrite().

Referenced by Exiv2::Internal::TiffIfdMakernote::doWrite().

The documentation for this class was generated from the following files:

tiffcomposite_int.hpp
tiffcomposite_int.cpp
